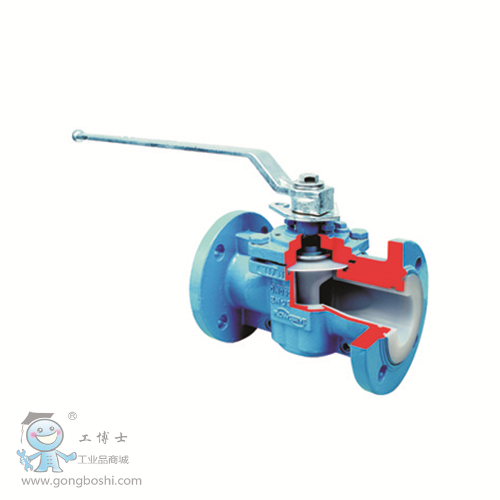

Durco T4E valves provide maximum corrosion resistance while eliminating product contamination at a reasonable cost. They are available with pneumatic or electric actuators for on-off or modulating control applications.
Main feartures:
•Cost-effective alternative to high-alloy body materials
•Reliable performance in extreme service conditions such as severe cycling, vacuum applications, and elevated temperatures ensured by T-slots and anchor holes that provide strong attachment of lining to body and plug
•Efficient, high-flow capacity due to large ports, which reduce friction losses and pressure drop
•High availability and easy maintenance with in-line adjustment; no disassembly is required to restore seating
Size Range:
•NPS 1/2" - 14"
•DN 15 - DN 150
Pressure Class Range:
•PN 10
•PN 16
•Class 150
•Class 300
Seating Material: PFA, PFA-conductive
